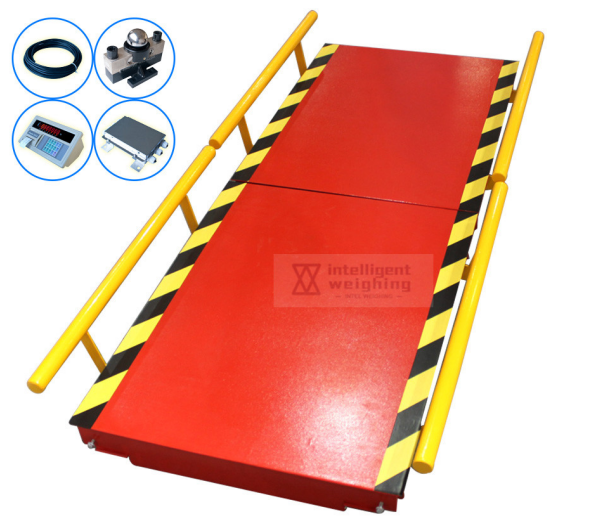

3x9m 50ton vehicle weighing scale with rails
3x9m 50ton vehicle weighing scale with rails 3x9m 50ton vehicle weighing scale with rails 3x9m 50ton vehicle weighing scale with rails 3x9m 50ton vehicle weighing scale with rails 3x9m 50ton vehicle weighing scale with rails

3x9m 50ton vehicle weighing scale with rails

Product ID : IWWB11003-9
Product Tags :
Product Attributes :

Intelweighing electronic truck scale weighbridge is a new generation of truck scale weighbridge which depends on today’s domestic truck scale weighbridge advantage. It’s gradually developed by our own technology and long period of overloading tests.

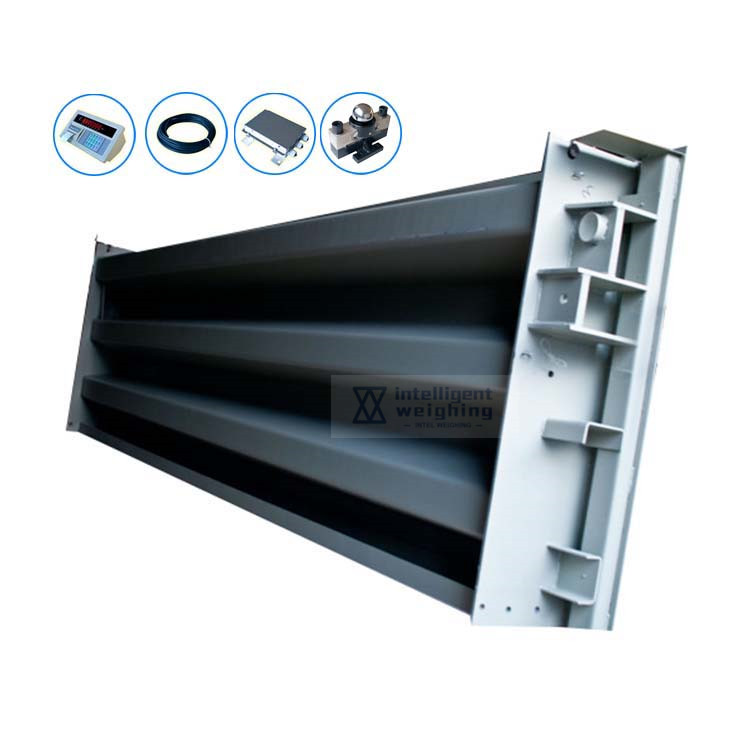

The main beam is sturdy U-type structure. The weighing platform panel selects Q-235 flat and splices into to the closed box-type structure, which is a very reliable structure.

Welding platform design is standardizing, modularized, serialized, it can form to a variety of models freely, the system selects high precision double shear beam or column weighing sensors, weighing indicator has rich features , strong storage and with a battery that can continue using when the power off, as well as a high precision, low temperature drift and stronger anti-interference stainless steel waterproof junction box, and signal shielded cable to make the measurement system multifunctional and reliable.

Superior measurement performance, high accuracy, long-term stability, convenient installation and maintenance, make our truck scale weighbridge widely used in materials measurement in or out, inventory measurement, production monitoring and data management and etc. It’s suitable for metallurgy, chemical industry, food, logistics and other industries and is an ideal choice for weighing of lorries, trailers, semi-trailers, containers, dump trucks, agricultural vehicles and other overloading vehicles.

Product Description

The Superiority of our truck scale :

*Modularization, standardization, serialization platform, multi-unit combination
*Automatic reset force transmission system
*Can be matched with various indicators
*Digital display gross weight, net weight, tare
*Dynamic, under load and overload, etc state display
*Digital filtering, clear tare automatically
*Subtract tare and clear tare automatically
*Keyboard set/calibration
*Vehicle No., tare storage, subitem accumulation, total accumulation
*Data output/print automatically





Other optionals:

*1.Optional in platform size, Max. Cap.
*2.Optional in other brand's load cells, indicator.
*3.Optional RS232 interface

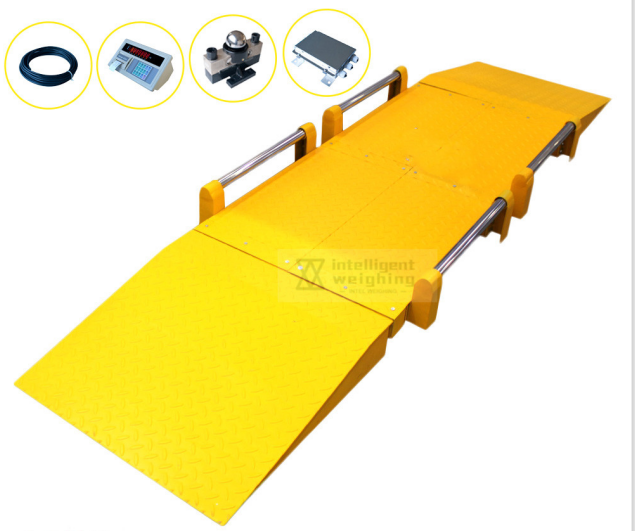

*4.Optional ramps or rails.
*5.Optional big screen.
*6.Optional extra printer
*7.Optional software
*8.Optional computer
*9.Optional double shielded cable

The Details of our truck scale weighbridge:

The Model list of our truck scale weighbridge:



Model

Size (m)

Max

Division value (kg)

Q'ty of Section

No. of load cells (pcs)

capacity (ton)

IWWB11003-6

3*6

20-60

10

1

4

IWWB11003-7

3*7

20-60

10

2

6

IWWB11003-9

3*9

30-60

20

2

6

IWWB11003-12

3*12

30-80

20

2 or 3

6 or 8

IWWB11003-15

3*15

50-100

20-50

3

8

IWWB11003-16

3*16

50-120

20-50

3

8

IWWB11003-18

3*18

60-150

20-50

3 or 4

8 or 10

IWWB11003-20

3*20

60-200

20-50

4

10

IWWB11003.4-16

3.4*16

60-150

20-50

3

8

IWWB11003.4-18

3.4*18

60-200

20-50

3 or 4

8 or 10

IWWB11003.4-20

3.4*20

60-200

20-50

4

10

IWWB11003.4-24

3.4*24

60-200

20-50

4 or 5

10 or 12
